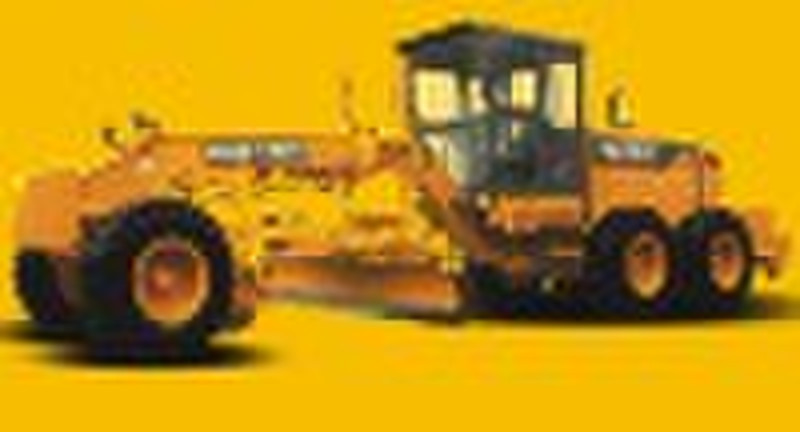

PY200TF Motor Grader

C6121 dieselenginewith low emission.high efficiency. (Liuzhou) ZF6WG200transmission with electro-hydraulic control,power shift. Completely sealed, low-noise, ROPS/FOPS cabin with standard configuration of environment-friendly hot & cool A/C, mp3 player. Open-type hydraulic system (HUSCO control valve), adjustable blade control system. The machine frame with completely sealed box-structure could be installed with various working devices. Single-lever Joy stick could control the speed swiftly and sensitively. REXROTH (Germany) fully-hydraulic braking system. High-load "NO-SPIN" (anti-slipping) differential with automatic locking/releasing function 3962mm(13ft) blade. Main Specification ITEM UNIT DATA Operation weight (standard model) Total weight Kg/lb 17500/38570 Front axle Kg/lb 4850/10689 Rear axle Kg/lb 12650/27881 engineModel (shang chai)C6121 Flywheel power Kw/hp 147/200 Rated power Kw/hp 162/220 Rated rotation r/min 2200 Max.traction KN 100 Blade cutting force Kg/lb 9000/19836 L*W*H Mm/ft 9250*2600*3330 30*8.5*11 WheelbaseFront axle to rear axle Mm/ft 6340/20.80 Middle axle to rear axle Mm/ft 1550/5.08 Tread distance Mm/ft 2250/7.38 Steering system Max.front wheel steering angle (° ) 45 Max.articulated steering angle (° ) 20 Min.turn radius Mm/ft 8100/26.57 Blade Length Mm/ft 3962/13.00 Arch height Mm/ft 610/2.00 Max.tilting angle (° ) 90 Rotating angle (° ) 360 Earth-cutting angle rangle (° ) 30 65 Max.lifting height Mm/ft 455/1.50 Max.earth-cutting depth Mm/ft 495/1.62 Max.side-extending length(left/right) Mm/ft 2330/3310 7.64/10.85
